General Information

FOAMGLAS^® F is a warm roof insulation board manufactured from specially graded recycled glass (≥ 60%) and natural raw materials which are available in abundant supply (sand, dolomite & lime). The insulation is totally inorganic, contains no ozone depleting propellants, flame resistant additives or binders.

Offering the highest compressive strength of any FOAMGLAS^® product, FOAMGLAS^® F is used above or beneath floor slabs, and upon roofs where the compressive loads are high.

For use with approved waterproofing systems.

Features

• Non-combustible
• Time tested thermal performance
• Waterproof
• Resistant to attack
• High compressive strength
• Acid resistant/chemical resistant
• Impervious to water vapour
• Dimensionally stable
• Ecological
• Radon protection

Installation Instructions

Apply FOAMGLAS^® F insulation boards parallel to roof perimeter long edges. Stagger end joints.

Lay FOAMGLAS^® F insulation boards with edges in moderate contact without forcing.

Cut FOAMGLAS^® F insulation to fit neatly to perimeter blocking and around penetrations through roof, when using a 2nd layer stagger joints of insulation from first layer.

Cut FOAMGLAS^® F boards to slope for a distance of 600mm back from roof drains for positive drainage.

Apply no more FOAMGLAS^® F insulation than can be covered with aggregate ballast/concrete roof pavers/green roofing in the same day.

Material complying with Euroclass A1, non-combustible, no toxic fumes.

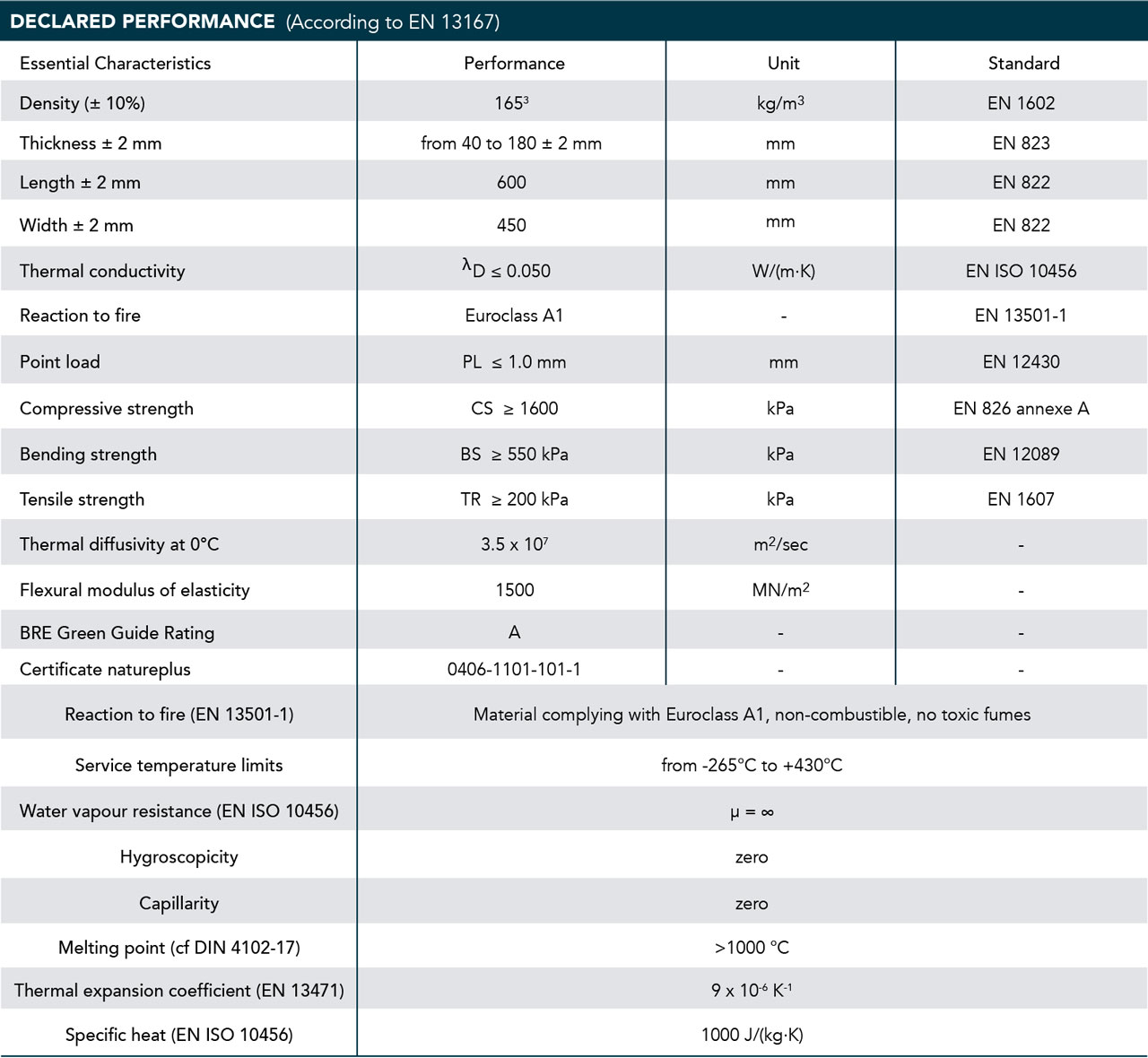

For full information regarding installation and specification please see Product Data Sheet.
